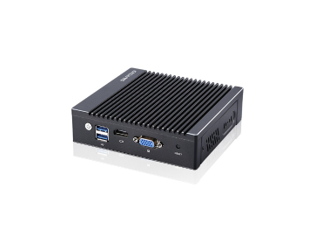

Mini PC K6-J4125-F12

CPU Intel Celeron J4125 2.0GHz 2.7GH
Cores/Threads 4 Cores / 4 Threads

Cache 4MB L2 Cache
TDP 10W
Architecture Gemini Lake
Memory 1*DDR4 SO-DIMM, max support 16GB
Storage SSD (mSATA) Optional HDD (the motherboard supports the expansion of a 2.5-inch hard drive) The shell does not support HDD expansion Audio Card HD Audio realtek ALC 662
Graphics Intel® UHD Graphics 600
Network 4 x INTEL I225-V（2.5 Gigabit Ethernet）

Extendable WIFI+Bluetooth(M.2) or 3G/4G Module(M.2) (There is a SIM card slot on the motherboard)
OS Support Windows (Not include XP) & Linux
I/O Ports 2*USB3.0、1*VGA、1*HDMI、4*RJ45、1*DC Internal I/O Ports 1*SIM1、1* 9Pin USB2.0,1* SATA,1 * 8PIN FPANEL,1*9Pin COM,1 * JP3 3PIN,1*buzzer,1* FPW1

Display Mode 4K / Support Dual display (Duplicate mode, Extend mode)
Max Resolution(VGA): 1920*1080@60Hz; Max Resolution(HDMI 1.4): 3840*2160@30H

Boot Mode PXE / Auto-power-on / Wake-on-LAN

Intel Virtualization Support VT-x, Not Support VT-d
Intel Hyper-Threading Support
Working Environment Temperature：-10~60 ℃
Relative Humidity：0~90%（No Condensatio
Working Voltag DC 12V - 3A
Storage Environment Temperature：-10~60 ℃
Relative Humidity：0~90%（No Condensatio
