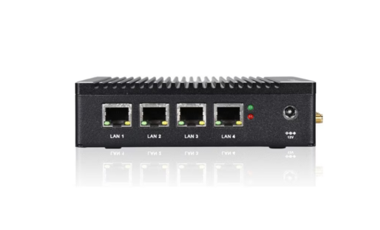

K8-F12C-N3700

CPU Intel Pentium N3700 1.60GHz 2.4GHz
Cores/Threads 4 Cores / 4 Threads
Cache 2MB L2 Cache TDP 6W
Architecture Braswell
Memory 1*DDR3L slot, max support 8GB
Storage SSD (mSATA) Optional HDD (the motherboard supports the expansion of a 2.5-inch hard drive)
The shell does not support HDD expansion HD
Audio Card HD Audio realtek ALC 662
Graphics Intel HD Graphics
Network Intel I211 Gigabit Ethernet Controller
Extendable WIFI+Bluetooth(MINI PCIE) or 3G/4G Module(MINI PCIE) (There is a SIM card slot on the motherboard)
OS Support Windows (Not include XP) & Linux
I/O Ports 2*USB3.0、1*VGA、1*HDMI、4*RJ45、1*DC
Internal I/O Ports 1*SIM1、1*PW_IN (Phoenix terminal)、1*CPU_FAN、1*JBAT、1*FP_USB21
(Expand to 2*USB2.0 )、 1*SATA_PWR1、1*SATA1、1*FP

Display Mode 4K / Support Dual display (Duplicate mode, Extend mode)
Max Resolution(VGA): 1920*1080@60Hz; Max Resolution(HDMI 1.4): 3840*2160@30Hz
Boot Mode PXE / Auto-power-on / Wake-on-LAN
Intel Virtualization Support VT-x, Not Support VT-d
Intel Hyper-Threading Not Support
Working Environment Temperature：-10~60 ℃
Relative Humidity： 0~95% (No Condensation) Working Voltage DC 12V - 5A
Storage Electricity Contact discharge 2K, Air discharge 6K
Storage Environment Temperature：-10~60 ℃
Relative Humidity： 0~95% (No Condensation)

Warranty 1 Year (Carry-in)
