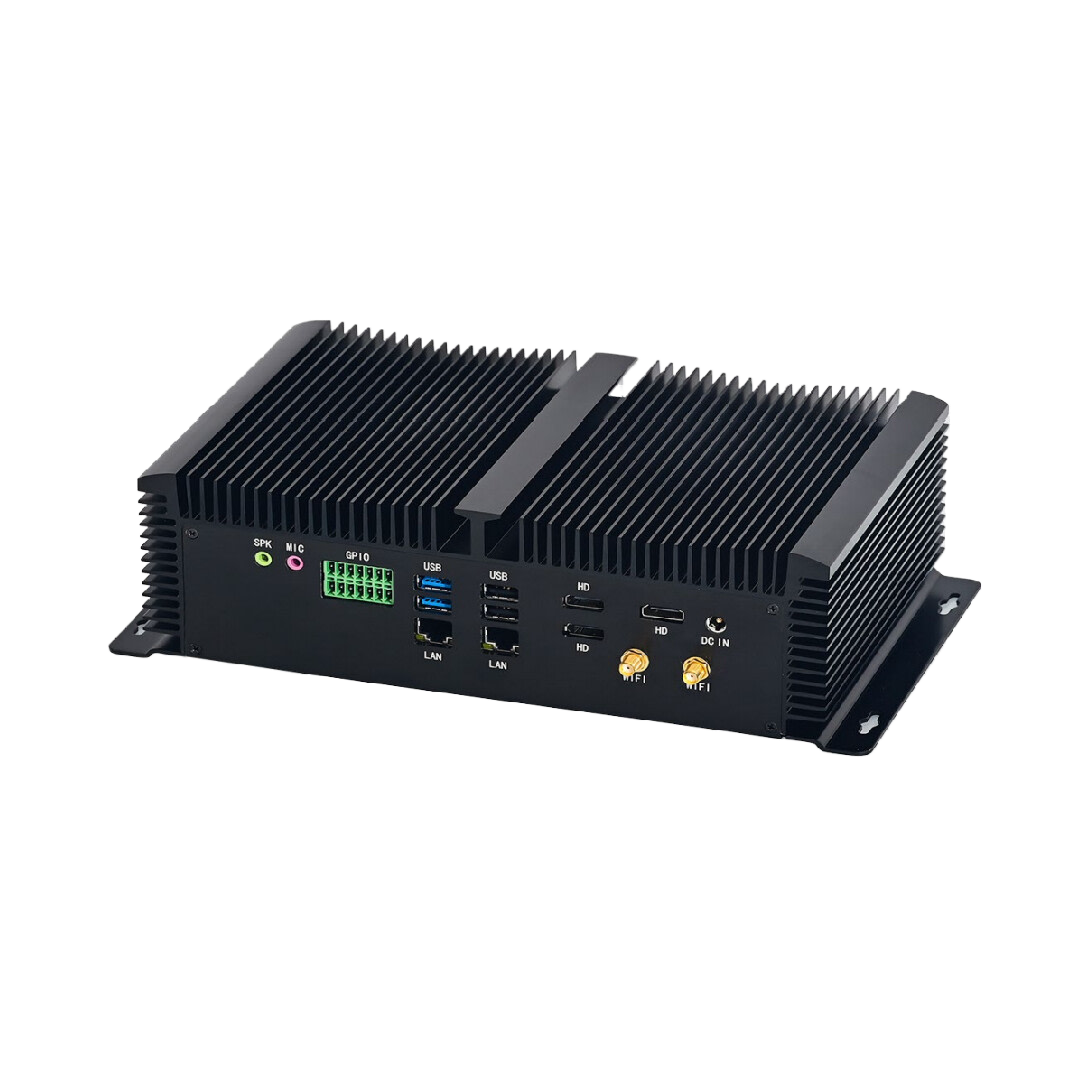

GT9000-i7-9750H

CPU : Intel Core i7-9750H Six-core 12threads 2.6Ghz up to 4.5Ghz 12MB Cache with Intel UHD 630 Graphics TDP 45WTDP 45W
Chipset : Intel SOC
BOIS : AMI BIOS, ACPI supported
Memory : 1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB DDR4 2133/2400/2666Mhz
OS : Windows 7/Windows 8/Windows 10/Linux
Audio : ALC662 chip Support 6 channels of sound
Network : Onboard 2* intel i211+i219 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Video : Intel UHD 630 Graphics. Triple display output synchronously
4G : Full hight 4G Module support. with SIM Card slot

Storage
M.SATA : 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA : 1 x SATA3.0 slot for SATA HDD or SSD, support
M.2 : 1 x M.2 2280 Nvme/SATA

Wi-Fi
Module : 1 x mini PCIE-half port for Wi-Fi modu
Antenna : 2 x inner RF cables and 2 x external ant

Input/output port
Switch : 1 x Power On/Kī^ǁŝƚĐ
Power : 1 x 12V DC In
PS2 : 1 x PS2
Gpio : 1 x GPIO
USB : 4 x USB2.0, 4 x USB3.0
Display : 3 x HDMI 1.4 Output
COM : 6*RS232/RS422/RS485 COM Port(BIOS Settings)
LAN : 2 x RJ45 Giga LAN
Audio : 1 x MIC, 1 x SPK

Power and Working Environment

Input : C100-240V AC/50-60H

Output : 12V 5A

Operating Temperature : 0/+60 Centigrade

Storage Temperature : 0/+ 70 Centigrade

Relative Humidity : %~90% (non-condensing)

Product Dimension & Details
Functions :
Size :
Weight :
Shell :

Warranty 1 Year (Carry-in)
เงื่อนใขการรับประกันสินค้า https://www.entgroup.co.th/warrantys
