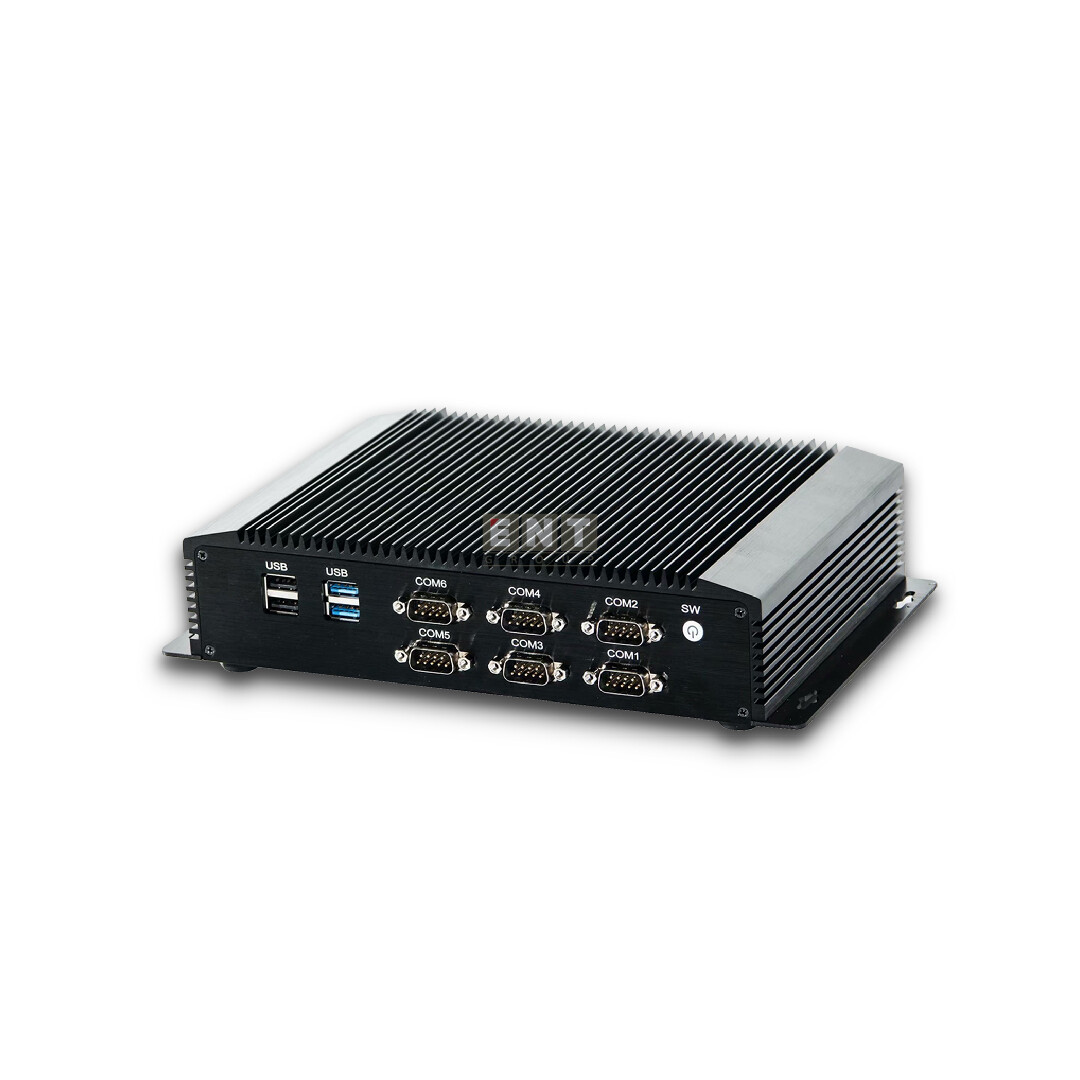

GT5000-i7-4500U

CPU : Intel Core i7 4500U (4M Cache, 1.8-3.0GHz) 2 core 4 threads, Intel HD 4400 Graphics
TDP : 15W
Chipset : Intel Haswell
BOIS : OEM BIOS developed by Manufacturer
Memory : 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3/L/-RS 1333/1600
OS : Windows 7/Windows 8/Windows 10/Linux
Audio : ALC662 HD Audio(Line-in, Line-out, Mic-in) Intel Lynx Point-LP HD Audio Controller
Network : Onboard Intel i225 2.5G Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video : Intel Haswell- ULT Integrated Graphics Controller Intel HD Graphics 4400

Storage
M-sata : 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s,8G/16G/32G/64G/128G/256G/512G/1TB (Optional)
SATA : 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s,320G/500G/1TB/2TB (Optional)

Wi-Fi
Module : 1 x mini PCIE-half port for Wi-Fi module
Antenna : 2 x inner RF cables and 2 x external antennas

Input/output port
Switch : 1 x Power On/Off Switch
Power : 1 x 12V DC In
COM : 6*RS232(3 line), COM1 COM2 support set to RS485/RS422
USB : 4 x USB2.0, 4 x USB3.0
Display : 1 x VGA, 1 x HDMI
GPIO : 1x GPIO
LAN : 2 x RJ45 Giga LAN
4G Module : 1x mini PCIE-full(Usb bus) port for 4G module
SIM : 1x Micro SIM, with PUSH function
Audio : 1 x MIC, 1 x SPK

Power and Working Environment
Input : DC100-240V AC/50-60Hz
Output : 12V-5A
Operating Temperature : 0/+60 Centigrade
Storage Temperature : -20/+ 70 Centigrade
Relative Humidity : 0%~90% (non-condensing)

Product Dimension & Details
Functions : Auto Power On, Wake-On-LAN,PXE
Size : 230*175*50mm
Weight : Net 1.8kg, Gross 2.5kg
Shell : Aluminum Alloy with Black color
Cooling Mode : Fanless

Package Content
Standard : 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

Warranty 1 Year (Carry-in)
