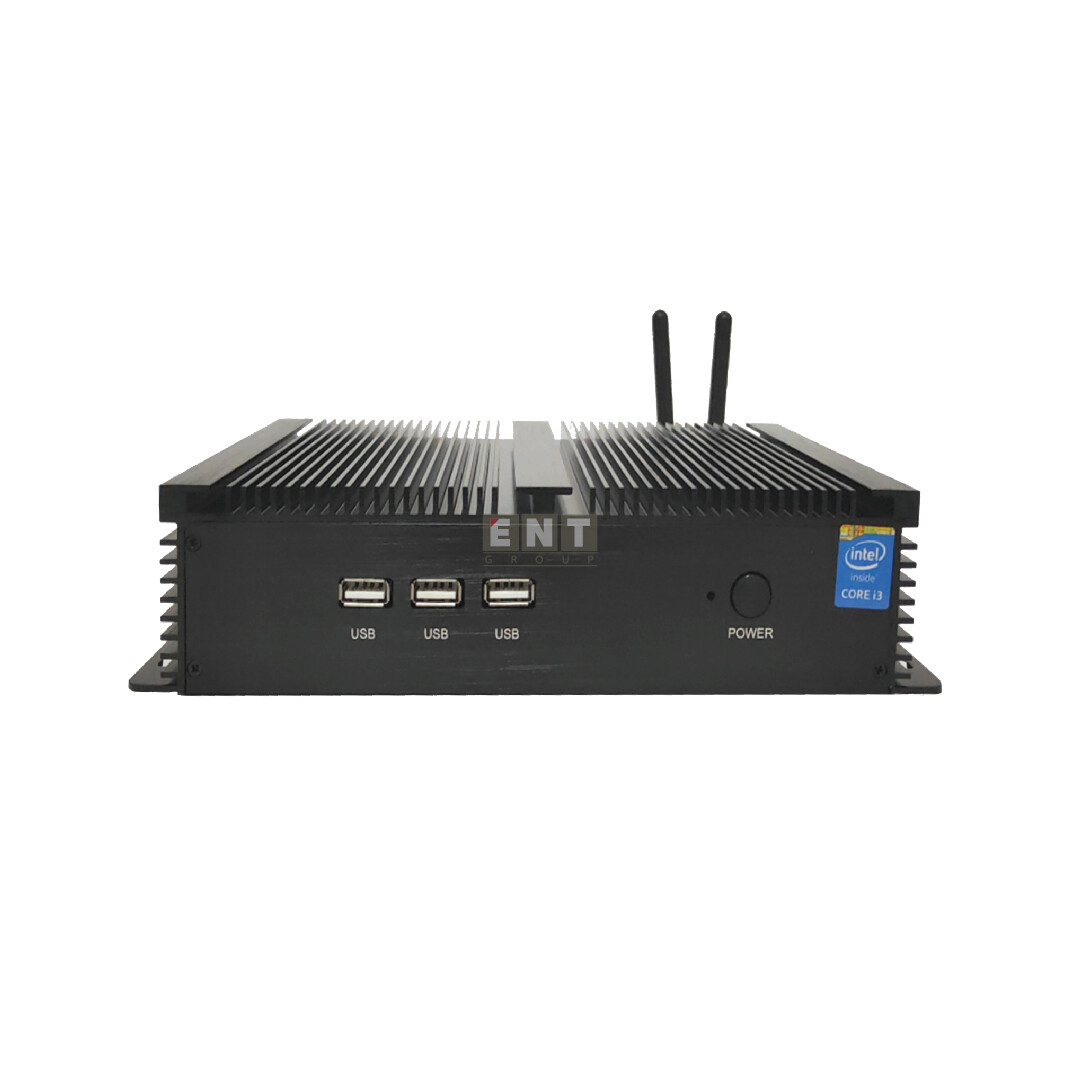

GT3000-i3-7020

CPU Intel® i3-7020u/i3-7167U
TDP : 17W
Chipset : Depends on CPU
BOIS : AMI BIOS, ACPI supported
Memory : 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3/L/-RS 1333/1600
OS : Windows XP/ win 7/Win 10/ Linux Ubuntu
Audio : Intel(R) display audio @ Intel Panther Point High Definition
Network : 2* Realtek RTL8168E PCI-E Gigabit Ethernet NIC
Video : Intel HD Graphics

Storage
M.SATA : 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA : 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi
Module : 1 x mini PCIE-half port for Wi-Fi module
Antenna : 2 x inner RF cables and 2 x external antennas

Input/output port
Switch : 1 x Power On/Off Switch
Power : 1 x 12V DC In
LED : 1 x LED
USB : 4 x USB2.0, 4 x USB3.0
Display : 1 x HDMI, 1x VGA
LAN : 2 x RJ45 Giga LAN
COM : 4 x RS232 COM Port
Audio : 1 x MIC, 1 x SPK

Power and Working Environment
Input : DC100-240V AC/50-60Hz
Output : 12V 3-5A
Operating Temperature : 0/+60 Centigrade
Storage Temperature : '-20/+ 70 Centigrade
Relative Humidity : 0%~90% (non-condensing)

Product Dimension & Details
Functions : Power on, Wake-On-LAN,PXE
Size : 234*150*48MM
Weight : Net 1.8kg, Gross 2.5kg
Shell : Aluminum Alloy with Black color
Cooling Mode : Fanless

Package Content
Standard : 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional : 1xHDMI cable
Warranty 1 Year (Carry-in)
