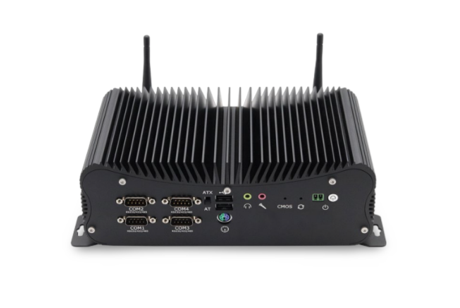

GB2000 Core i7-10510U

Processors Intel Core i7-10510U Processor, 6M Cache, 1.6GHz up to
4.20GHz(Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics
BOIS American Megatrends Inc

2x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB
OS Windows 7/Windows 8/Windows 10/Linux, WES7/10
Audio Intel High Defintion Audio Controller
Network Intel(R) i210/i211 Gigabit Network Connection10/100Mbps/1000Mbps BaseT LAN
Video Refer to CPU

M.2/Msata 1x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1x M.2 slot for NVME 2280 SSD, support 6Gb/s

SATA 1x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
(Wifi) Module 1x mini PCIE-half port for Wi-Fi/Bluetooth module
1x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module
1x Extended IO, support LPC, USB, PCIE

Antenna 2x inner RF cables and 2 x external antennas
(Input/output port)
Switch 1x Power On/Off Switch
Power 1x 3pin phoenix terminal power supply input, support 9~36V
Button 1x ATX/AT quick switch
PS/2 1x PS/2(keyboard and mouse 2 in 1)
USB 4x USB3.0, 2 x USB2.0
display 1x VGA, 1x HDMI
LAN 2x Intel GbE RJ45 LAN
Audio 1x MIC, 1x SPK
COM 6x DB9 COM(4xCOM support RS422/RS485)
GPIO 1x GPIO( 7pin input, 7pin output)
Others 1x Reset, 1 x CMOS clear bution, 1x 2pin Phoenix terminal power supply input
(Power and Working & details)
Input DC100-240V AC/50-60Hz
Output DC +9V~+36V, recommend 12V/5A
Operating Temperature 0/+60 Centigrade
Storage Temperature -20/+70 Centigrade
Relative Humidity 10%~90%@30 Centigrade (non-condensing)
(Product Dimension & Details:)
Functions PEX,Watchdog, One key reset, AWAL, RTC, WOL(ATX mode)
Size 249*150*86mm
Weight NW 2.2KG, GW 3.5KG
Shell Black color PVP top and aluminum alloy body
Mounting 4 mounting holes on case
Cooling Mode Fanless
(Package Content)
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag

Warranty 1 Year (Carry-in)
