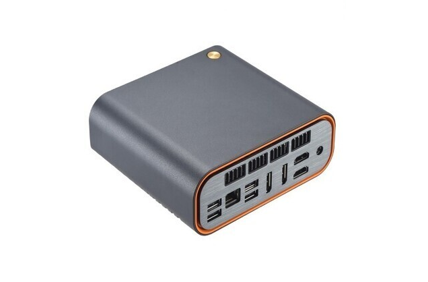

F23-1145G7 Core I5

CPU Intel Core I5-1145G7 2.60GHz-4.10 GHz
Cores/Threads 4Cores/8Threads
Cache 8MB Cache
TDP 28W
Architectur Products formerly Tiger Lake
Memory 2*SO-DIMM DDR4 slot, max support 32G
Storage SSD (M.2 2280 SATA/NVME) Optional HDD
Audio Card HD Audio realtek ALC 269
Graphic Intel® Iris® Xe Graphics
Network 10/100/1000Mbps adaptive RTL 8111H
Extendable WIFI+BT Module (Mini PCIE)，support 4G module with available sim slot
OS Support Boot Mod Windows 10、Windows 11 Linux
I/O Ports 4*USB3.0、4*USB2.0、2*HDMI、2*DP、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*TYPE-C 、

Built-in socket
1.M2M KEY socket: H8.5mm supports 2280 (SATA and PCIE)
2.Battery socket: white 1*2pin (distance 1.25mm)
3.M2E KEY socket: H8.5mm supports WIFI/WIFI6
4.MSATA socket: with Nano-SIM card slot (H9.0mm supports 3G/4G module)
5.2*DDR4 memory: Double D4=3200MT/S
6.Buzzer

Boot Mode UEFI PXE / Auto-power-on / Wake-on-LAN
Intel Virtualization Support
Intel Hyper-Threading Support
Working Environmen Support t Temperature：-10~60℃
Working Voltage DC 12V -
Static Electriciy Contact discharge 2K, Air disc
Storage Environment Temperature : -10~60℃
Relative Humidity：0~95% (No Condensation)
Relative Humidity：0~95% (No Condensation)

Warranty 1 Year (Carry-in)
